PHILIPP | GV Rotatoren

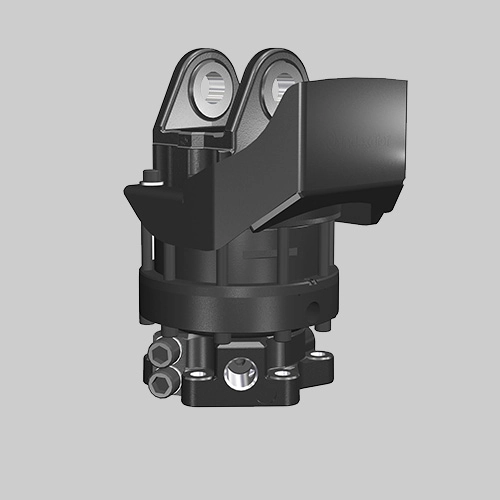

GV Rotators
INDEXATOR
Grapple saw rotator
GV 124
Static load max: 10000kg
Dimension connection at the top: tab spacing spacing 80.5 mm with 35 mm bore
Dimension connection below: Flange flange mm
Product no.:
5112134
€3,145.00
INDEXATOR
Grapple saw rotator
GV 124-S
Static load max: 10000kg
Dimension connection at the top: tab spacing 101 mm with 45 mm bore
Dimension connection below: Flange flange mm
Product no.:
5112127
€3,375.00
INDEXATOR
Grapple saw-rotator
GV 124-S-203
Static load max: 10000kg
Dimension connection at the top: tab spacing 101 mm with 45 mm bore
Dimension connection below: Flange flange mm
Product no.:
5112153
€3,725.00
INDEXATOR
Grapple-rotator
GV 4-30-K
Static load max: 4500 kg
Dimension connection at the top: pin 75 mm wide with 30 mm bore
Dimension connection below: Flange flange x 140 mm
Product no.:
5040005
€1,110.00
INDEXATOR
Grapple-rotator
GV 14-S-A-Y-HD
Statische Last max: 10000 kg
Dimension Anschluss oben: Laschenabstand 101 mm mit 45 mm Bohrung
Dimension Anschluss unten: Flansch 6x17-173 mm
Product no.:
5140001
€2,765.00
INDEXATOR
Grapple-rotator
GV 12-A
Static load max: 10000kg
Dimension connection at the top: tab spacing spacing 80.5 mm with 35 mm bore
Dimension connection below: Flange flange mm
Product no.:
5212050
€2,225.00
INDEXATOR
Grapple-rotator
GV 4-K
Static load max: 4500 kg
Dimension connection at the top: pin 75 mm wide with 25 mm bore
Dimension connection below: Flange flange x 140 mm
Product no.:
5040006
€1,110.00
INDEXATOR
Grapple-rotator
GV 6-69-30
Static load max: 6000 kg
Dimension connection at the top: tab spacing spacing 80.5 mm with 35 mm bore
Dimension connection below: shaft 69 mm with bore 30 mm
Product no.:
5006295
€1,295.00
INDEXATOR
Grapple-rotator
GV-6
Static load max: 6000 kg
Dimension connection at the top: tab spacing spacing 80.5 mm with 35 mm bore
Dimension connection below: Flange flange mm
Product no.:
5006285
€1,395.00
INDEXATOR
Grapple-rotator
GV 17-S-203-LS
Static load max: 16000 kg
Dimension connection at the top: tab spacing 101 mm with 45 mm bore
Dimension connection below: Flange flange mm
Product no.:
5170000
€3,265.00
INDEXATOR
Grapple-rotator
GV-4/30-B84-K
Statische Last max: 4500 kg
Dimension Anschluss oben: Zapfen 84 mm Breite mit 30 mm Bohrung
Dimension Anschluss unten: Flansch 4x17-140 x 140 mm
Product no.:
5040022
€1,110.00
INDEXATOR
Grapple-rotator
GV 12-Y-HD
Static load max: 10000kg
Dimension connection at the top: tab spacing spacing 80.5 mm with 35 mm bore
Dimension connection below: Flange flange mm
Product no.:
5120000
€2,125.00
INDEXATOR
Grapple-rotator
GV 12-2-S
Static load max: 10000kg
Dimension connection at the top: tab spacing 101 mm with 45 mm bore
Dimension connection below: Flange flange mm
Product no.:
5212206
€2,395.00
INDEXATOR
Grapple-rotator
GV-6-69-30-P
Static load max: 6000 kg
Dimension connection at the top: tab spacing spacing 80.5 mm with 35 mm bore
Dimension connection below: shaft 69 mm with bore 30 mm
Product no.:
5006296
€1,295.00
INDEXATOR
Grapple-rotator
GV 12-2-S-A
Static load max: 10000kg
Dimension connection at the top: tab spacing 101 mm with 45 mm bore
Dimension connection below: Flange flange mm
Product no.:
5212207
€2,395.00
INDEXATOR
Grapple-rotator
GV 17-S-A-203
Static load max: 16000 kg
Dimension connection at the top: tab spacing 101 mm with 45 mm bore
Dimension connection below: Flange flange mm
Product no.:
5217278
€3,265.00
INDEXATOR
Grapple-rotator
GV 17-US-173
Static load max: 16000 kg
Dimension connection at the top: tab spacing 136.5 mm with 52.2 mm bore
Dimension connection below: Flange flange mm
Product no.:
5217180
€3,490.00
INDEXATOR
Grapple-rotator
GV 4-E-I
Statische Last max: 4500 kg
Dimension Anschluss oben: Laschenabstand 80.5 mm mit 35 mm Bohrung
Dimension Anschluss unten: Flansch 4x17-173 mm
Product no.:
5040015
€1,110.00
INDEXATOR
Grapple-rotator
GV 4-63-30
Static load max: 4500 kg
Dimension connection at the top: pin 75 mm wide with 25 mm bore
Dimension connection below: Shaft 63 mm with bore 30 mm
Product no.:
5040009
€975.00
INDEXATOR
Grapple-rotator
GV 17-S-A-Y-HD
Static load max: 16000 kg
Dimension connection at the top: tab spacing 101 mm with 45 mm bore
Dimension connection below: Flange flange mm
Product no.:
5217080
€3,290.00
INDEXATOR
Grapple-rotator
GV 17-US-203
Static load max: 16000 kg
Dimension connection at the top: tab spacing 136.5 mm with 52.2 mm bore
Dimension connection below: Flange flange mm
Product no.:
5217181
€3,490.00
INDEXATOR
Grapple-rotator
GV 12-2
Static load max: 10000kg
Dimension connection at the top: tab spacing spacing 80.5 mm with 35 mm bore
Dimension connection below: Flange flange mm
Product no.:
5212048
€2,115.00
INDEXATOR
Grapple-rotator
GV 12-2-S-LS
Static load max: 10000kg
Dimension connection at the top: tab spacing 101 mm with 45 mm bore
Dimension connection below: Flange flange mm
Product no.:
5212209
€2,395.00
INDEXATOR
Grapple-rotator
GV 3-30-K
Static load max: 3000 kg
Dimension connection at the top: pin 75 mm wide with 30 mm bore
Dimension connection below: Flange flange x 140 mm
Product no.:
5002284
€1,065.00
