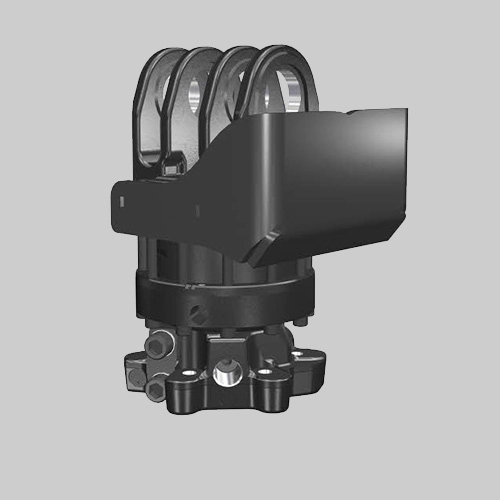

PHILIPP | G Rotatoren (4 Laschen)
G Rotators (4 lugs)
INDEXATOR
Grapple-rotator
G 171-Y-HD
Static load max: 16000 kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7140000
€3,405.00
INDEXATOR
Grapple-rotator
G 141-Y
Static load max: 10000kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7214010
€2,860.00
INDEXATOR
Grapple-rotator
G 121-2
Static load max: 10000kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7212106
€2,530.00
INDEXATOR
Grapple-rotator
G 171-203
Static load max: 16000 kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7214082
€3,350.00
INDEXATOR
Grapple-rotator
G 171-2
Static load max: 16000 kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7140005
€3,395.00
INDEXATOR
Grapple-rotator
G 121-Y-BC
Static load max: 10000kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7212054
€2,730.00
INDEXATOR
Grapple-rotator
G 141-A-Y-HD
Static load max: 10000kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7140011
€2,890.00
INDEXATOR
Grapple-rotator
G 101 Y
Static load max: 6000 kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7060003
€2,475.00
INDEXATOR
Grapple-rotator
G 121-A-Y
Static load max: 10000kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7212053
€2,625.00
INDEXATOR
Grapple-rotator
G 171
Static load max: 16000 kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7214081
€3,350.00
INDEXATOR
Grapple-rotator
G 121-Y-HD
Static load max: 10000kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7120010
€2,645.00
INDEXATOR
Grapple-rotator
G 141
Static load max: 10000kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7214075
€2,820.00
INDEXATOR
Grapple-rotator
G 141-A
Static load max: 10000kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7214076
€2,820.00
INDEXATOR
Grapple-rotator
G 101
Static load max: 6000 kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7206075
€2,445.00
INDEXATOR
Grapple-rotator
G 121-LS
Static load max: 10000kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7212078
€2,595.00
INDEXATOR
Grapple-rotator
G 121
Static load max: 10000kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7212075
€2,600.00
INDEXATOR
Grapple-rotator
G 131-A-6
Static load max: 10000kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7120004
€2,699.00
INDEXATOR
Grapple-rotator
G 141-2-BC
Static load max: 10000kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7140004
€2,905.00
INDEXATOR
Grapple-rotator
G 121-A-Y-LS
Static load max: 10000kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7212055
€2,560.00
INDEXATOR
Grapple-rotator
G 121-Y
Static load max: 10000kg
Dimension connection above: MPB-1 = 144 mm with bore 62 mm
Dimension connection below: Flange flange mm
Product no.:
7212052
€2,550.00
INDEXATOR
Grapple-rotator
G 171-Y
Static load max: 16000 kg
Dimension connection above: 4 tabs 144 mm distance with bore 62 mm = MPB-1
Dimension connection below: Flange flange mm
Product no.:
7214088
€3,375.00
INDEXATOR
Grapple-rotator G 141-A-EPS
with Epsilon bracket X120F, X130R, X140F, X150R
Statische Last max: 10000 kg
Dimension Anschluss oben: MPB-1 = 144 mm mit Bohrung 62 mm
Dimension Anschluss unten: Flansch 6x17-173 mm
Product no.:
PAL-YE31007
€2,990.00
