HULTDINS
Log grapple
SuperGrip I 720-S

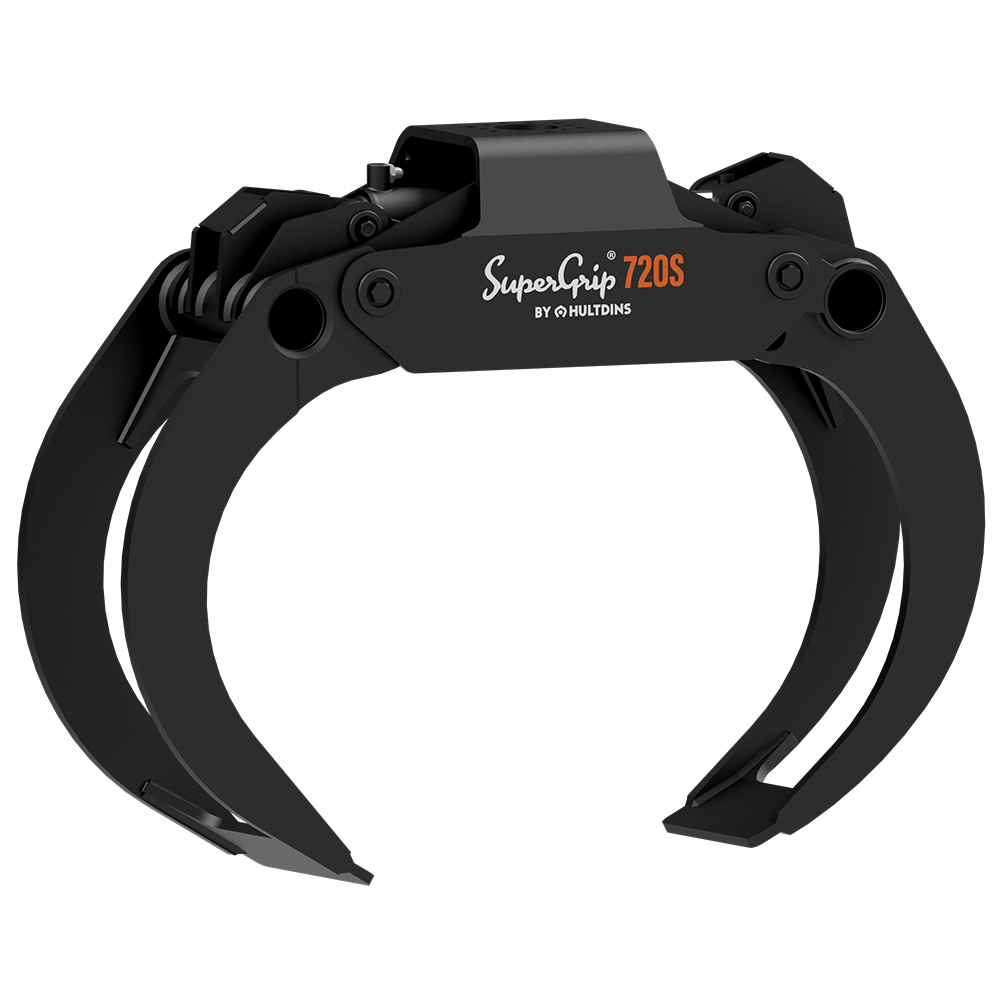

Log grapple SuperGrip I 720-S
8.945,00 €
Prices excl. VAT plus Shipping costs
Please login, to see your prices as a reseller. Don't have an account yet? Register quick and easy.
Product no.: 0689300
Description
- High-quality, stable grapple for heavy-duty timber handling with excavators Â
- Strongest version of the SuperGrip grapples
- Typical application: Excavators 20-30 t, material handlers 22-30 t, skidders, combination machines, log cranes 25-45 mt, use as clamping bench

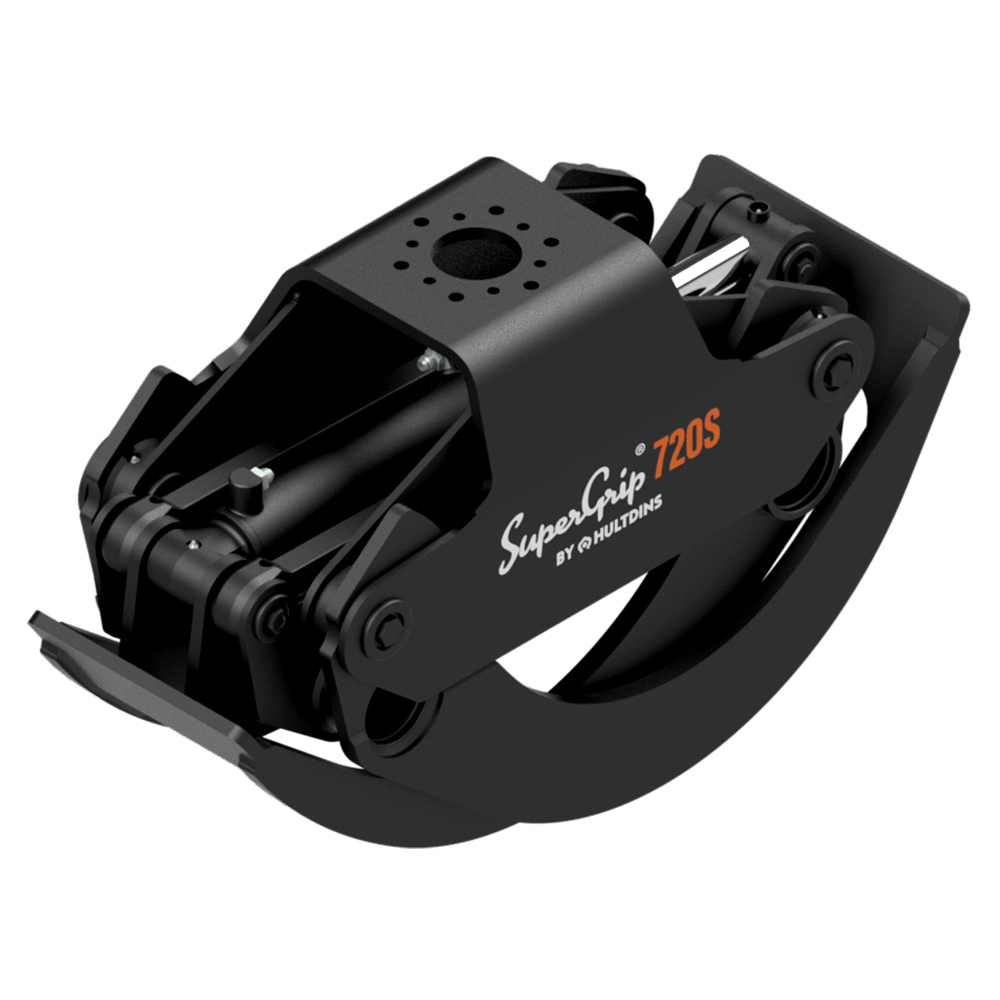

- Especially strong upper part formed as a box section made of 20 mm thick high-strength, Swedish construction steel STRENX from SSAB with the bolt circles 6x17-173 mm and 6x21-203 mm, for high loads and stable connection to the rotator Â
- Claws made of a continuous 30 mm thick side plate made of high-strength fine-grained steel STRENX; Reinforcement between claw pin and cylinder deflection to 50 mm material thickness on each side
- Claw cutting edges made of particularly wear-resistant Hardox 450; the claw cutting edges are positively embedded and welded into the side plates
- Two parallel rods made of high-strength cast steel
- Large, high-quality tubes (120 mm diameter) for deflecting the cylinder forces
- Over many years of optimized design and workmanship
- All bolts in expander design - prevent any play
- All bearings with perforated WIELAND bronze bushes
- Largest bearing diameters on the market, z.B. 80 mm diameter of the 4 pins on the claws
- Extremely durable hydraulic cylinder with end position damping; up to 250 bar working pressure
- High load capacity and reliability minimize downtimes and guarantee a long, long, trouble-free service life
- Excellent geometry for easy bundling and a high degree of filling results in very high productivity
- Combinable with grapple saw SuperSaw 550, 555-S, 650-S, and 6000-S
- Opening width 2.290 mm, cross-sectional area 0.72 square meters, cross-section practically 0.85 square meters
- Weight 526 kg, continuous load max. 8.000 kg
- On request, an adapter for Indexator XR300 can be supplied for particularly large loads and powerful material handlers >25 t can be supplied
- This reinforced version is also very well suited for use as a clamping bench grapple
- Our conclusion -Â Â a versatile and excellent log grapple
