INDEXATOR
Built-in rotator
IR 20 M20

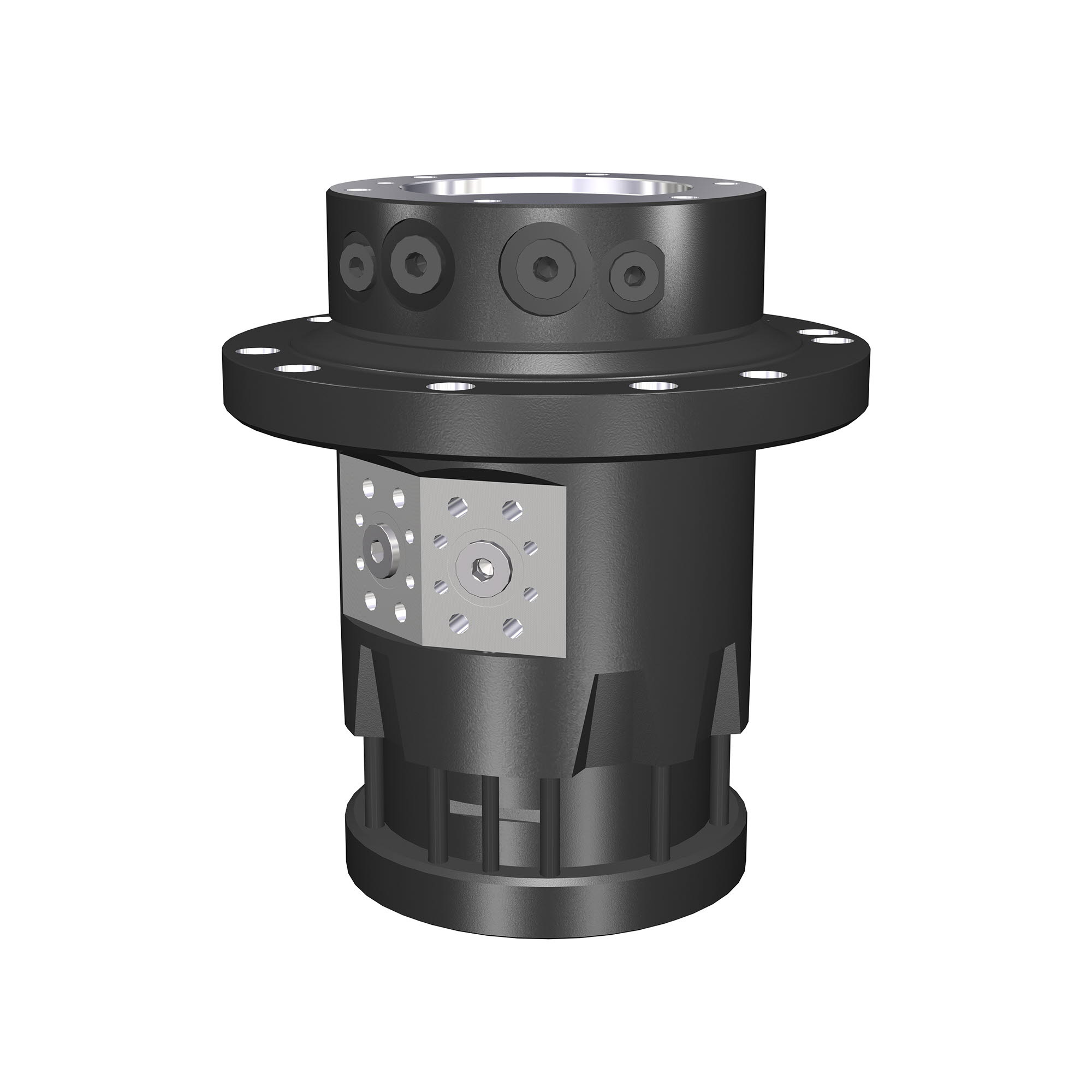

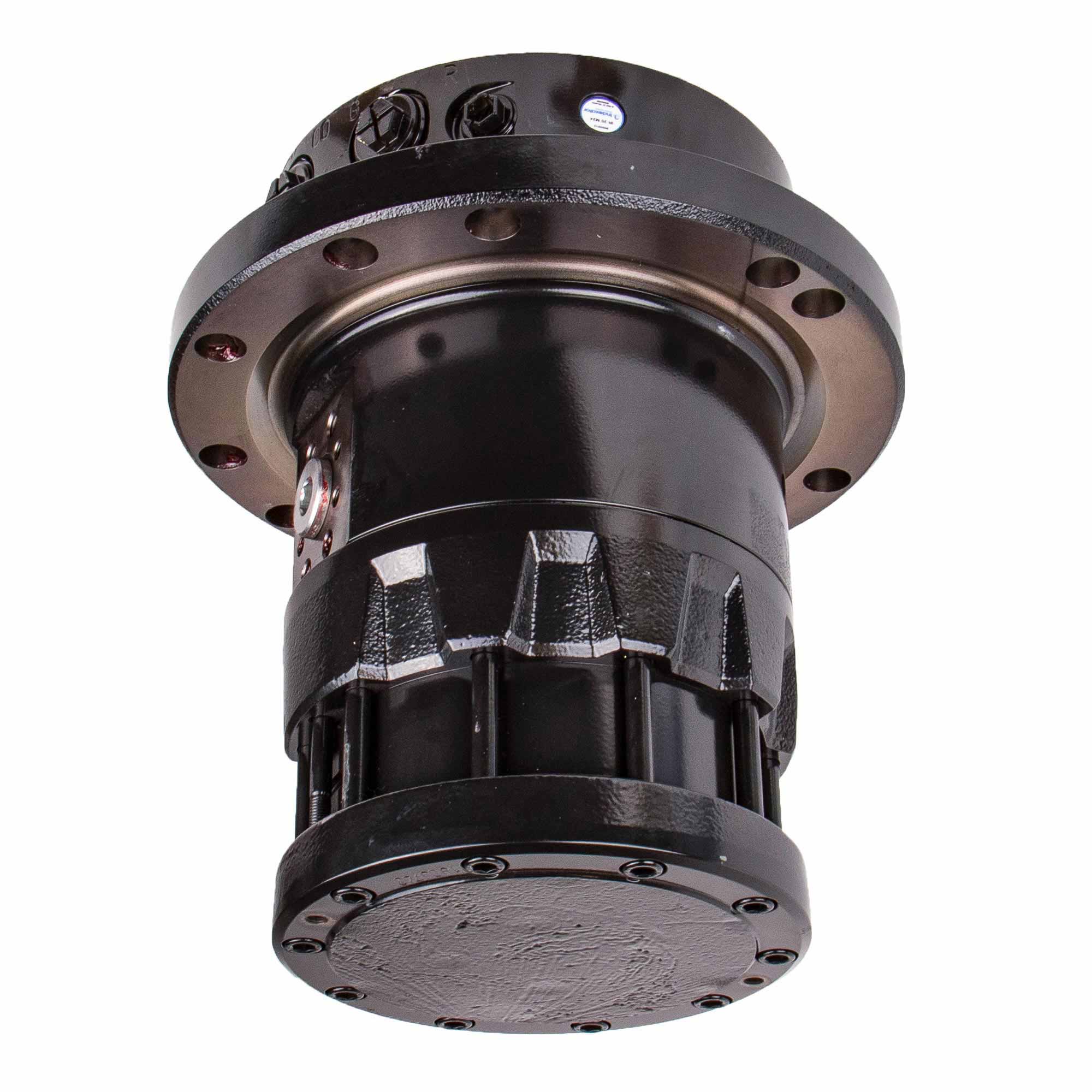

Built-in rotator IR 20 M20
6.520,00 €
Prices excl. VAT plus Shipping costs
Please login, to see your prices as a reseller. Don't have an account yet? Register quick and easy.
Product no.: 8000509
Description
- Especially strong and stable rotators for demanding material handling
- Suitable for Excavators, large cranes and skidders
- Same principle as IR 10
- Specially for larger attachments with high requirements
- Modular design with few moving parts for high reliability
- Available in various versions, u.a. as a mechanical rotator without motor
- Variant for direct connection of up to five grapple cylinders without Manifold
- Good bearing to absorb forces in different load directions
- 45.000 kg max. static load, 15,000 kg max. dynamic load
- Torque of 4.100 Nm at 250 bar
- Oil requirement 35 l/min
- Weight 146 kg
- Top mounting flange with bore with thread (bolt circle 6xM20-220 mm)
- Bottom mounting hole circle 340 mm diameter (10x26-340 mm)
- Hydraulic connections top 2 x G 1" + 2 x G 1/2"
- Hydraulic connections bottom 3 x SAE 3000 DN 25 / SAE 6000 DN 32 / G1
