Automatic quick coupler starter kit without with hydraulic couplings

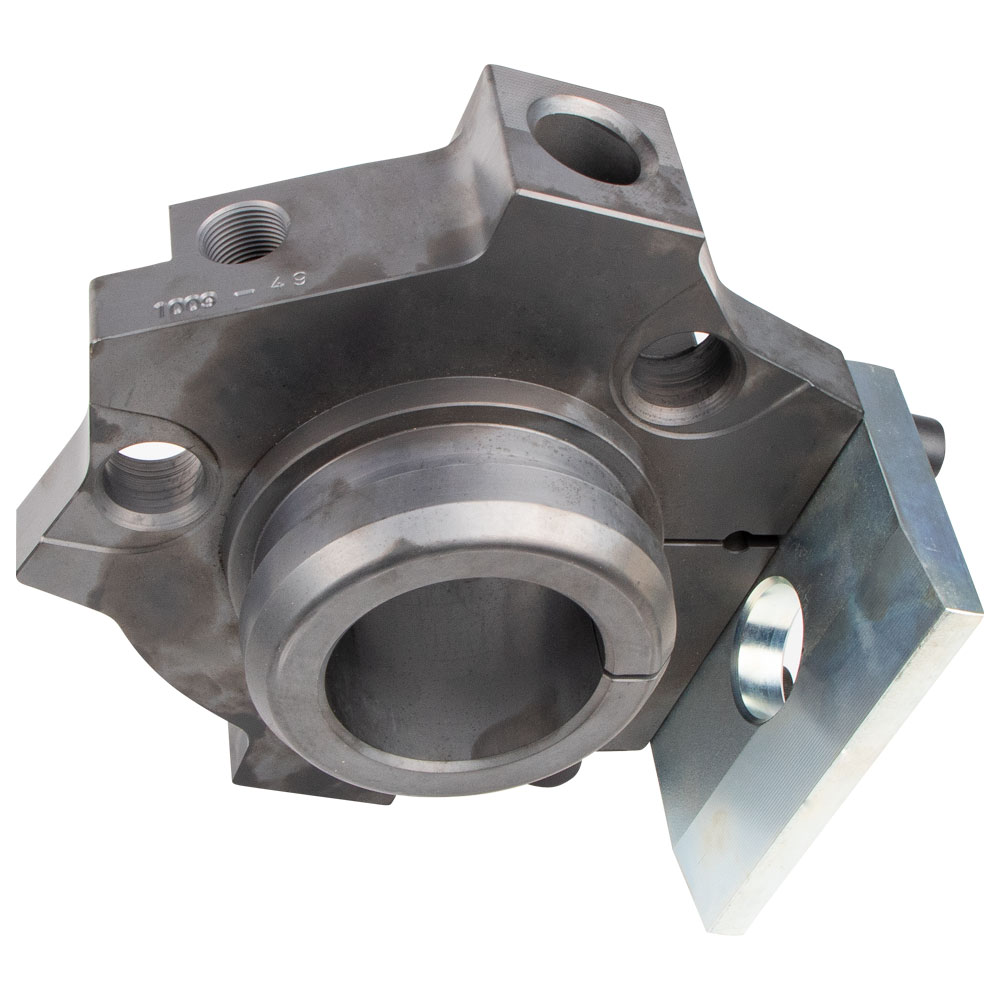

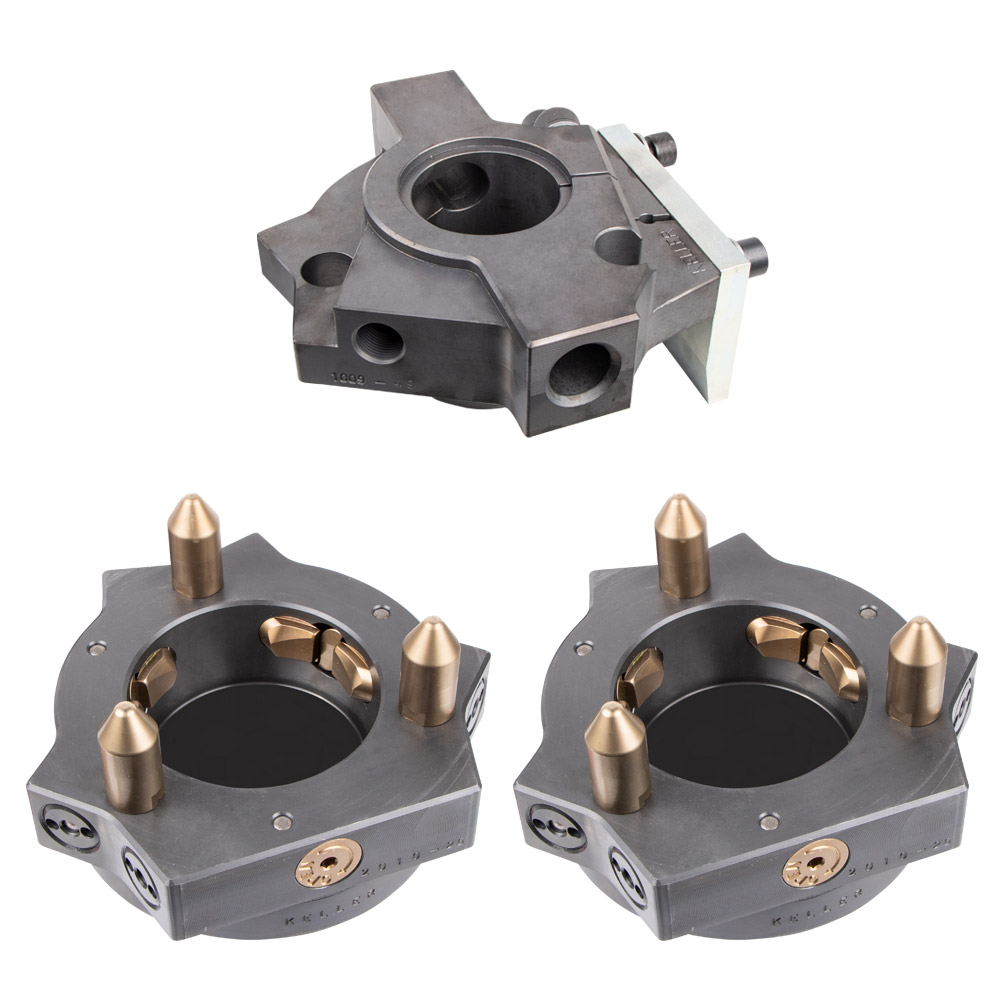

• Quick coupler set consisting of 1 x rotator flange, 2 x device flange, 1 x protective cap, 1 x tool
• Starter kit without hydraulic couplings
• Fits INDEXATOR Rotator GV12-A, GV12-2-A, GV12-S-A, GV12-2-S-A, GV14-S-A, G121-A, G131-A, G141-A
• Unlocking with an Imbuss key, Automatic locking
• Hydraulics are automatically coupled and uncoupled
• Very fast swapping processes < 2 minutes

Technical data:

• Max. Lifting capacity 12,000 kg
• Weight 30 kg
• Max. Interference circle 275 mm
• Fixing device 6 hole M16 - Ø 173 mm
• Height 83 mm
• Designed for 2 hydraulicplug-in couplings
• Safe connection thanks to 6 indicator pins

→ Swiss precisionProduct made of high-quality heat-treated steel

→The ROKE is milled from solid material and meets the highest quality standards
