Automatic quick coupler starter kit with hydraulic couplings standard

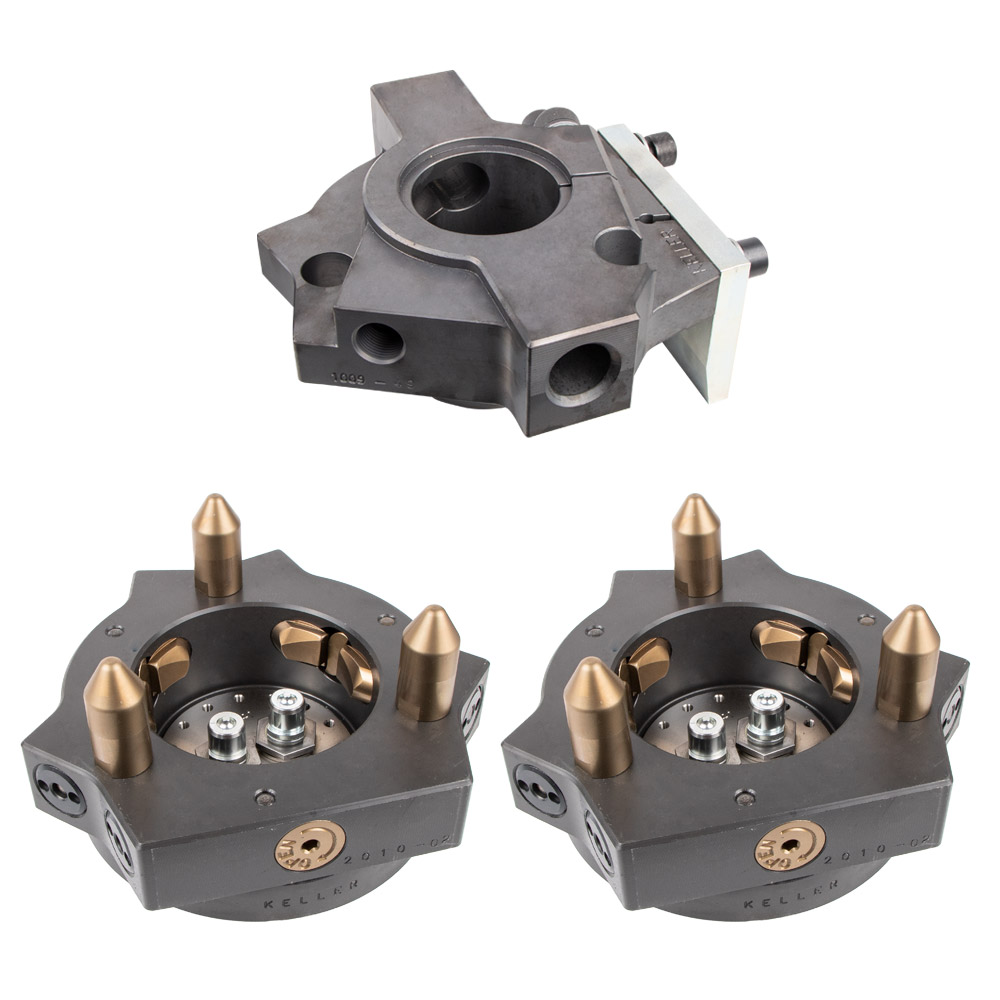

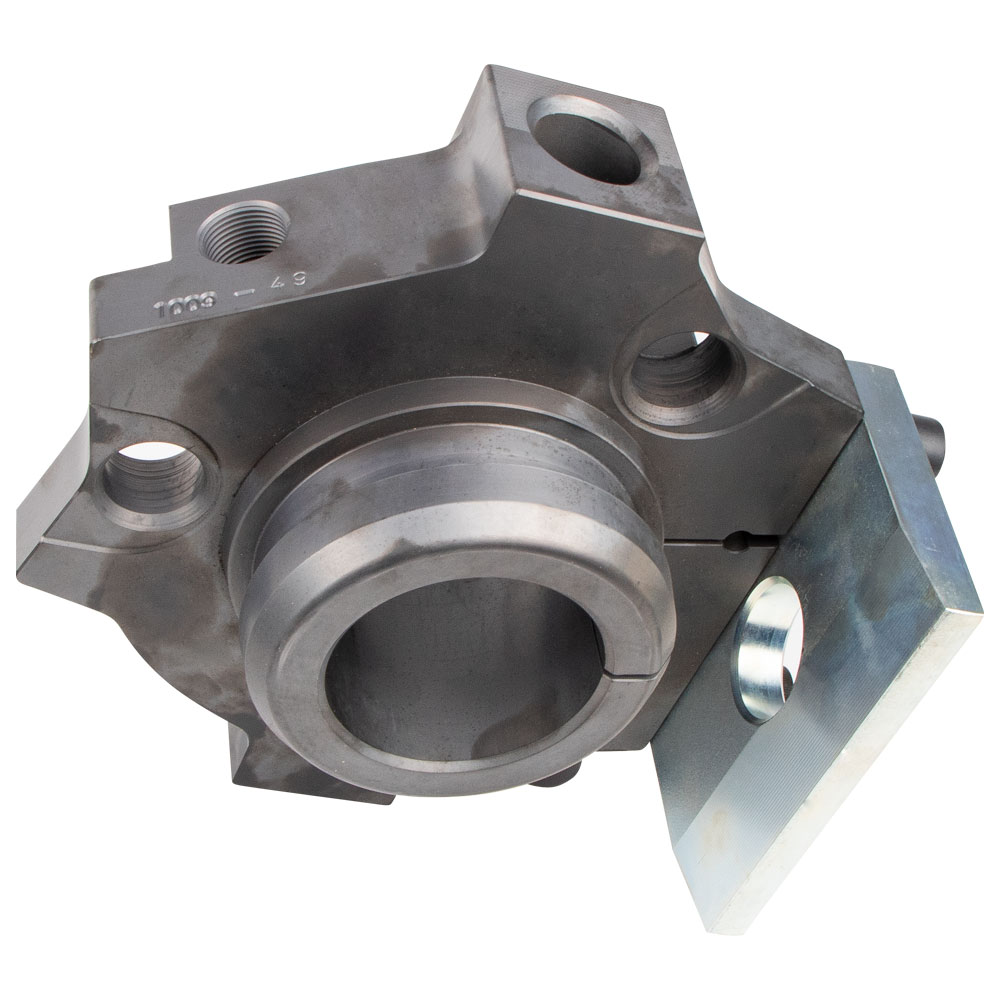

• Quick-change set consisting of 1 x rotator flange, 2 x tool flanges, 1 x protective cap, 1 x tool
• Compatible with BALTROTORS GR104DB/GR105DB
• Unlocks with an Allen wrench; locks automatically
• Hydraulics are automatically engaged and disengaged
• Very fast changeover < 2 minutes

Technical data:

• Max. lifting capacity 12,000 kg
• Weight: 30 kg
• Max. working radius 275 mm
• Device mounting: 6 M16 holes - Ø 173 mm
• Height 83 mm
• 2 hydraulic quick-connect couplings
• Nominal flow rate 65 l/min
• Max. pressure 300 bar
• Secure connection via 6 indicator pins

→ Swiss precision product made of high-quality heat-treated steel

→ The ROKE is milled from solid stock and meets the highest quality standards
