ROKE
Automatic quick coupler - Starter kit Standard
with hydraulic couplings standard
not suitable for "A" models
Automatic quick coupler - Starter kit Standard with hydraulic couplings standard
6.390,00 €
Prices excl. VAT plus Shipping costs
Please login, to see your prices as a reseller. Don't have an account yet? Register quick and easy.
Product no.: ROKE-1000150K
Description

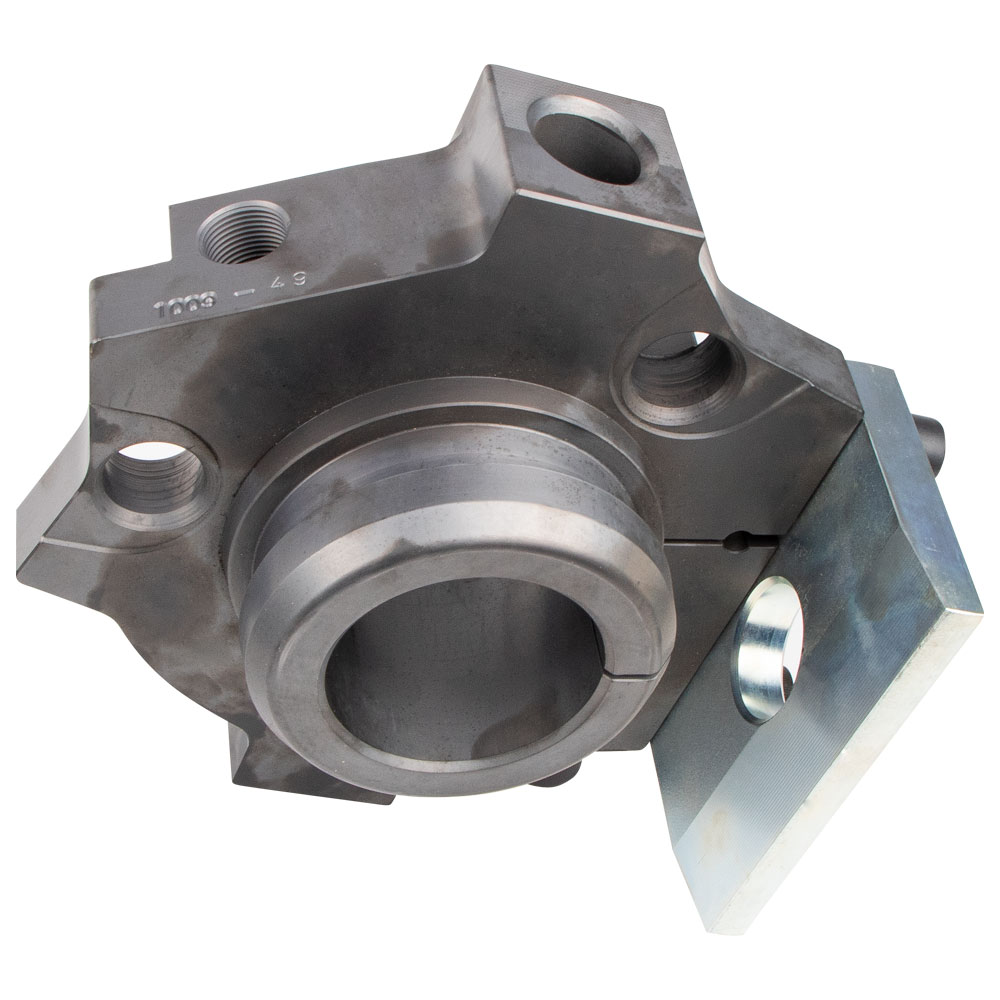

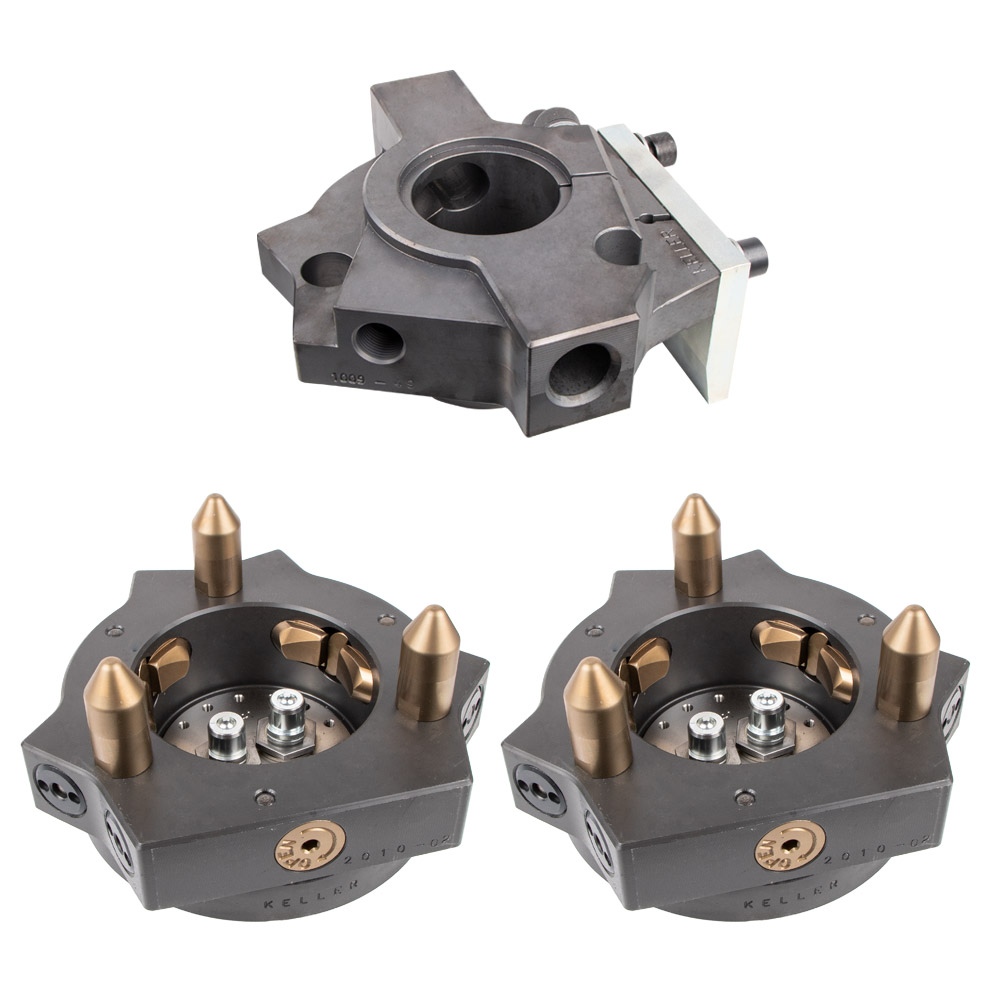

- Quick coupler set consisting of 1 x rotator flange, 2 x device flange, 1 x protective cap, 1 x tool
- Fits INDEXATOR Rotator GV12, GV12-2, GV12-S, GV12-2-S, GV14-S, G121, G141
- Unlocking with an Imbuss key, Automatic locking
- Hydraulics are automatically coupled and uncoupled
- Very fast swapping processes < 2 minutes
Technical data:
- Max. Lifting capacity 12,000 kg
- Weight 30 kg
- Max. Interference circle 275 mm
- Fixing device 6 hole M16 - Ø 173 mm
- Height 83 mm
- 2 hydraulicplug-in couplings
- Nominal flow rate 65 l/min
- Pressure max. 300 bar
- Safe connection thanks to 6 indicator pins
→ Swiss precisionProduct made of high-quality heat-treated steel
→The ROKE is milled from solid material and meets the highest quality standards
