Automatic quick coupler - Starter kit Standard with hydraulic couplings standard

ROKE-1000150A-03
ROKE-1000150A-01
ROKE
Automatic quick coupler - Starter kit Standard
with hydraulic couplings standard
fits "A" models
6.390,00 €
Prices excl. VAT plus Shipping costs
Please login, to see your prices as a reseller. Don't have an account yet? Register quick and easy.
Available from week KW 46.2026
Product no.: ROKE-1000150A
Description

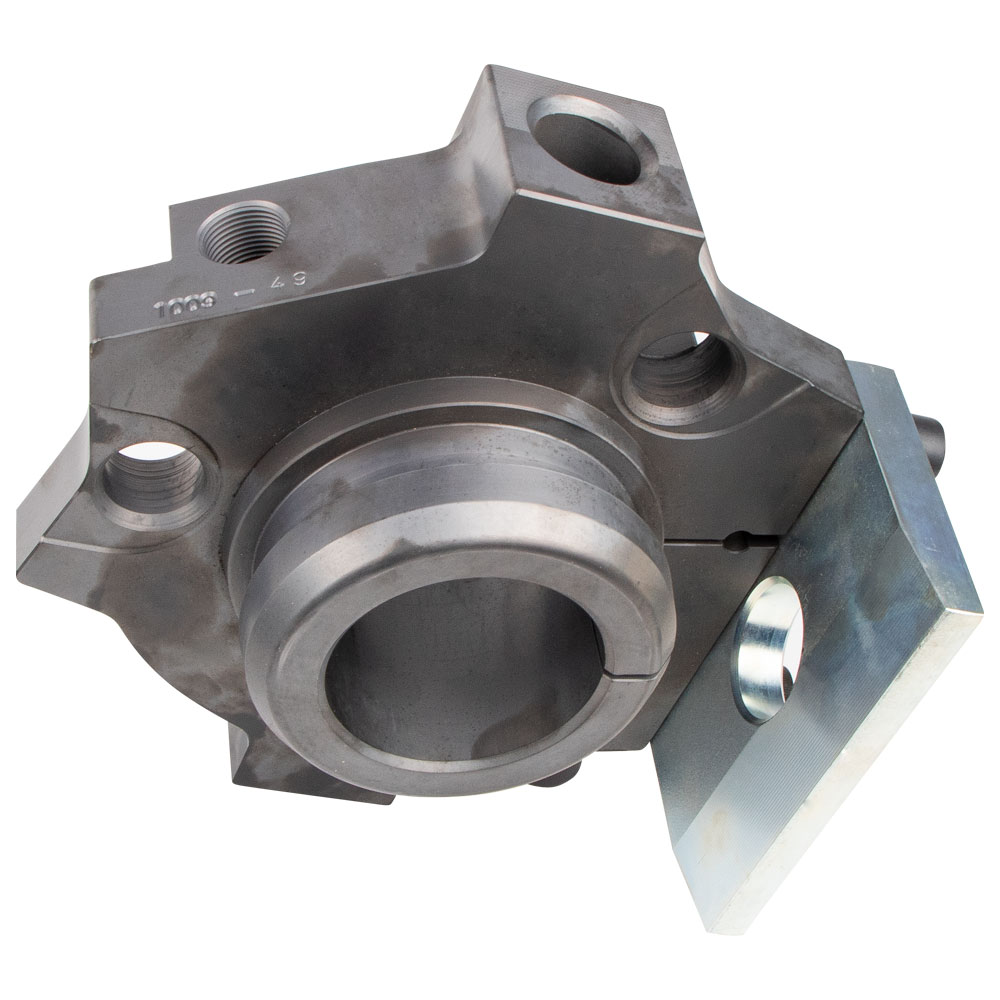

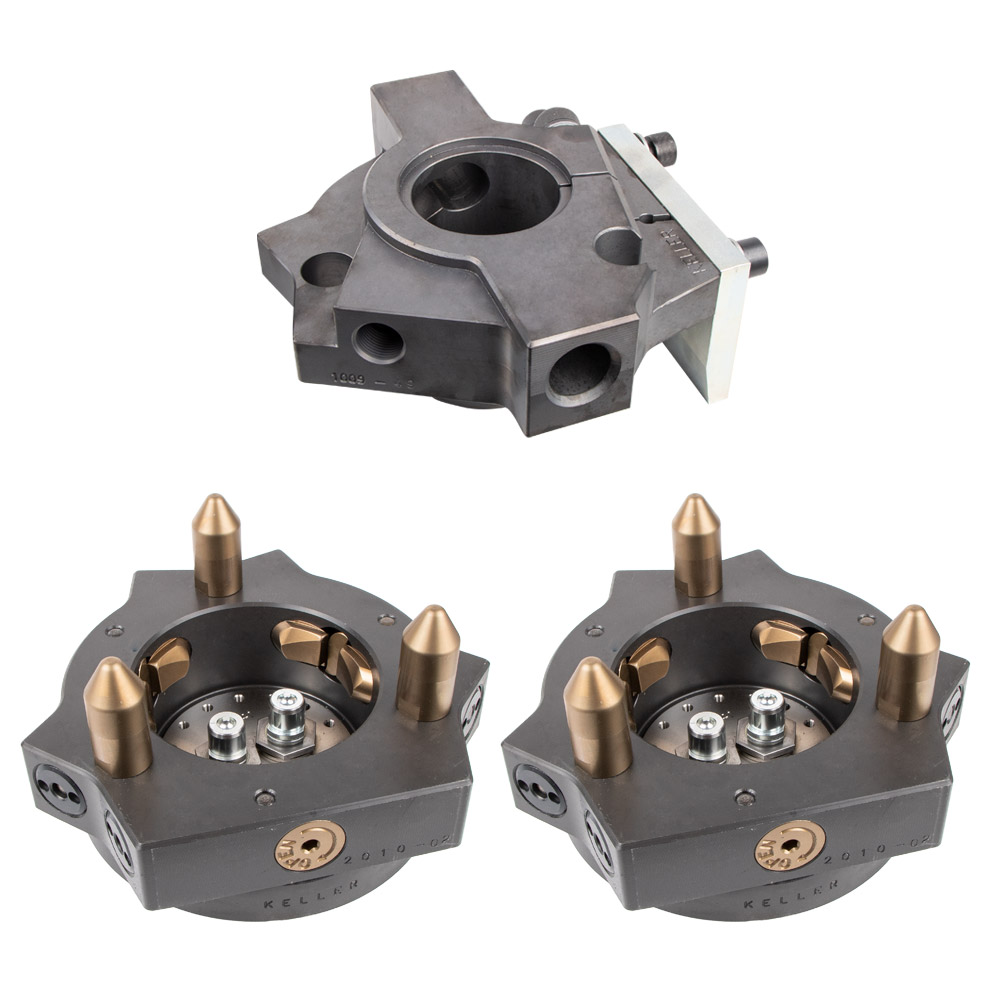

  • Automatic quick coupler - set consisting of 1 x rotator flange, 2 x device flange, 1 x protective cap, 1 x tool
  • Suitable for INDEXATOR Rotator GV12-A, GV12-2-A, GV12-SA, GV12-2-SA, GV14-SA, G121-A, G131-A, G141-A
  • Unlocking with an Allen key, locking automatically
  • Hydraulics are automatically coupled and uncoupled
  • Very fast exchange processes < 2 minutes
Technical specifications:
  • Max. lifting capacity 12,000 kg
  • Weight 30kg
  • Max. interference circle 275 mm
  • Fixing device 6 holes M16 - Ø 173 mm
  • Height 83mm
  • 2 hydraulic plug-in couplings
  • Nominal flow 65 l/min
  • Pressure max. 300 bar
  • Secure connection through 6 indicator pins
→ Swiss precision product made from high-quality heat-treated steel → The ROKE is milled from solid and meets the highest quality standards
Suitable for
Properties
  • With hydraulic couplings
Suitable for
INDEXATOR Rotator GV12-A, GV12-2-A, GV12-SA, GV12-2-SA, GV14-SA, G121-A, G131-A, G141-A
Weight (kg)
64.635
