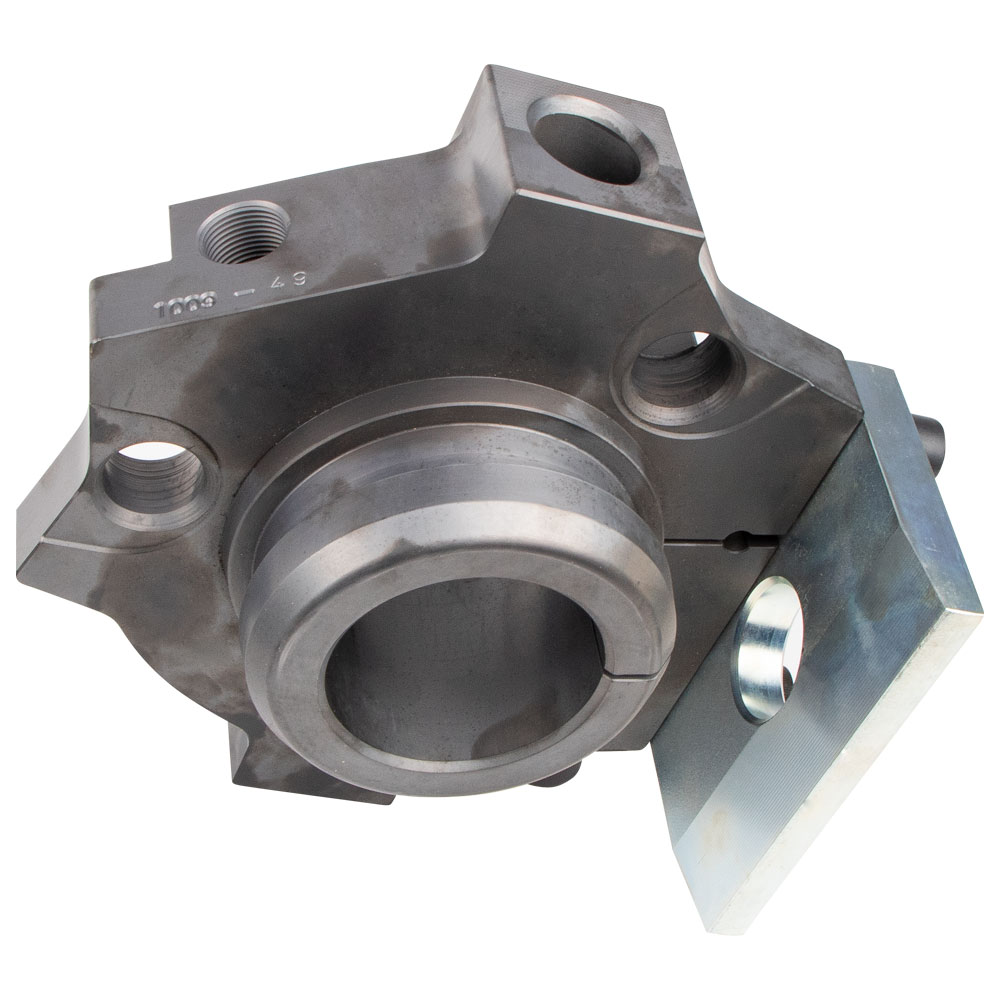

Automatic quick coupler rotator flange without with hydraulic couplings

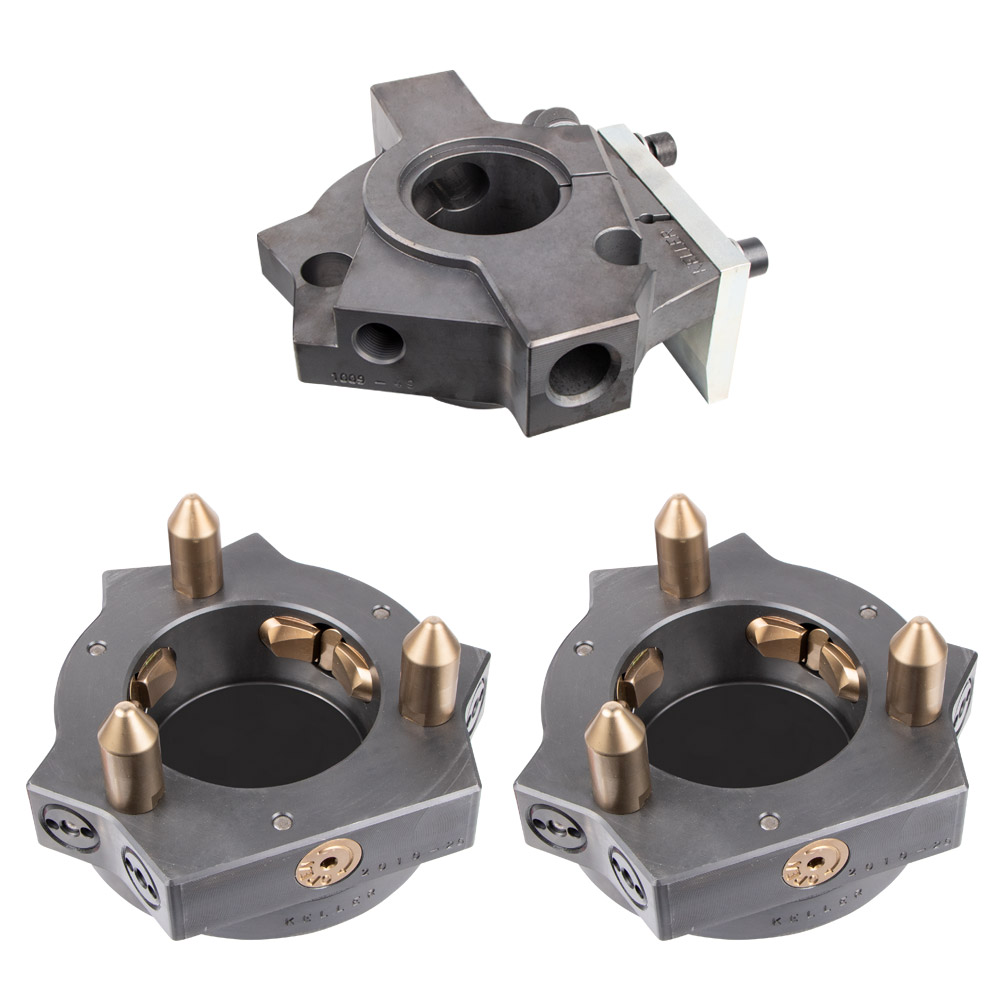

• Quick-change set consisting of 1 x rotator flange, 2 x tool flanges, 1 x protective cap, 1 x tool
• Starter set without hydraulic couplings
• Compatible with Baltrotor rotator
• Unlocks with an Allen wrench; locks automatically
• Hydraulics are automatically engaged and disengaged
• Very fast tool changes < 2 minutes

Technical Specifications:

• Max. lifting capacity: 12,000 kg
• Weight: 30 kg
• Max. clearance 275 mm
• Device mounting: 6 M16 holes – Ø 173 mm
• Height: 83 mm
• Designed for 2 hydraulic quick-connect couplings
• Secure connection via 6 indicator pins

→ Swiss precision product made of high-quality heat-treated steel

→ The ROKE is milled from solid stock and meets the highest quality standards
